Module: Case Runner#

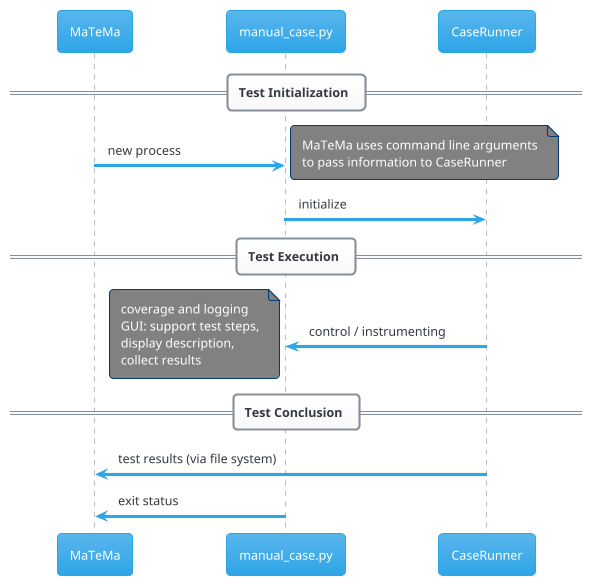

The CaseRunner is used within your manual test case to operate with the MaTeMa. The following outlines the interactions.

Initialization: The MaTeMa uses the command line arguments to pass information to the CaseRunner. This includes details on how to pass test execution details back to the MaTeMa.
Test Execution: The CaseRunner supports manual test case execution in various ways, see the usage patterns below.
Test Conclusion: The CaseRunner collects results from the execution and passes it back to the MaTeMa.

General Remarks#

Limitation: The manual test must not use command line arguments. Since the MaTeMa and the CaseRunner itself uses this interface for test control, inconsistencies can lead to unexpected behavior.
Limitation: The CaseRunner typically controls logging and coverage collection such that your test script should not also try to control those details.
Limitation: If the test case generates a tkinter.Tk instance, it must pass it via CaseRunner(parent=...). Exceptions are Tk instances confined in any test() or process_*() which will run in their own process.
Remark: The naming convention manual_*.py is only required for the MaTeMa, the CaseRunner can also be used without this constraint.

Use Case: no change to existing test cases#

While not being recommended, you can instrument existing test cases for MaTeMa by just adding an initialization of the CaseRunner to enable the usage with the MaTeMa and minimal support.

from appxc_metama import CaseRunner

# preparation steps for your test case

CaseRunner()

# your test case implementation

Remarks:

Since CaseRunner() activates the coverage recording, you should place it where the actual test case execution begins.
The overhead to your existing manual test case comprises: loading additional dependencies and checking whether there are command line arguments via CaseRunner().
You can put the test case description in the modules docstring like shown in the “Single Instance” use case.

#TODO The CaseRunner currently does not restrict its actions to just command line reading. There is no feature to not start the file parsing. The examples already draft expected behavior.

Use Case: Single Instance#

Split startup() and teardown() code. This has two effects:

this code is not increasing your coverage, the case runner will start coverage only for the execution of test()
because of the above, you limit the file dependencies to the test case and avoid marking the case invalid due to changes in the corresponding files

'''
Test case __description__ that can apply markdown.
'''
from appxc_metama import CaseRunner

# construct any objects you need

def setup():
	# any preparations before test execution

def teardown():
	# any steps after test execution

def test():
	# implementation of your test case

CaseRunner().run()

Remarks:

The functions setup() and teardown() are executed before and after any call of test() or process_*(). Without test() or process_*(), they have no effect.
The run() is required.
#TODO adding capabilities for test_*()would be nice and enable putting multiple test cases within one file manual_*.py like for pytest.

Use Case: Launching Processes#

Using process_*() functions will result in action buttons within the CaseRunner GUI. The buttons use the functions summary as labels and execute within a new process that loads your manual test case module.

def process_app_admin():
	''' Admin Application '''

def process_app_user():
	''' User Application '''

This pattern can apply in following situations:

testing interactions between multiple instances of an application
being able to close and reopen your instance during testing
adding automated sandbox actions like reset
- not for automated actions within your running instance - that’s not possible because it runs within it’s own process

Use Case: Sandboxed Instances#

Applications often have a persisted state on the file system (or on a server), referenced as sandbox. To prepare and tear down this sandbox, use the following hooks:

def setup_once():
	# sandbox preparation executed ONCE before any setup()

def teardown_once():
	# sandbox teardown executed ONCE before the case runner
	# closes and after any teardown()

Reference Sequences#

The following reference sequence is still an outline but hopefully clarifies any open questions concerning the order of execution.

Execute your module until CaseRunner()
1. if you called from CLI without arguments, nothing else happens
2. if MaTeMa or CaseRunner called it - behavior is defined elsewhere
  1. Even if MaTeMa calls the test case, nothing else will be activated. Use run() if you want more. <<<< TBD !!!!!!!!!!!!!!!!!!!
3. if you called from CLI with arguments: undefined behavior - most likely, you see output from the argument parser.
Execute code until run()
1. If there is no run(), nothing more than above will happen
2. The CaseRunner takes over responsibilities: see next steps
CaseRunner parses the module
CaseRunner GUI is initialized
1. This includes adding the buttons from any process_() function in your test case
CaseRunner executes setup_once()
CaseRunner initializes the test
1. Run setup()
2. Ensure logging and coverage is active
3. If existing, execute test()
CaseRunner GUI waits for test conclusion
1. May spawn any process_*()
CaseRunner concludes the test
1. stop coverage (but not logging)
2. run teardown() and teardown_once() (in this order)
3. if called from MaTeMa, writing test case result
Execute your module with anything after run()
